Gasket Product

(All Type Metal and Non Metal)

Global Engineering & Technology is the known manufacturer of,

Ring Joint Gasket
Spiral Wound Gasket
Metal Double Jacketed Gasket
Heat Exchanger Gasket
Kammprofile Gasket / Serrated Gasket
Corrugated Metal Graphite Gasket
Non-Asbestos Gasket (Asbestos Free Gasket / CNAF Gasket)
PTFE / Expanded PTFE Gasket / Gasket Sheet
Flexible Graphite Gasket / Gasket Sheet

Ring Joint Gasket

Global Engineering & Technology is a supplier of the high-quality Ring Joint Gaskets, suitable for high pressure and high-temperature applications.

We deal in R, RX, BX style joint gaskets available in Oval/ Octagonal Profiles. Each ring joint gasket is specifically made to bear the tolerance on CNC machines and are compliant to the ASME B16.20 Standard and API spec 6A requirements depending on the application.

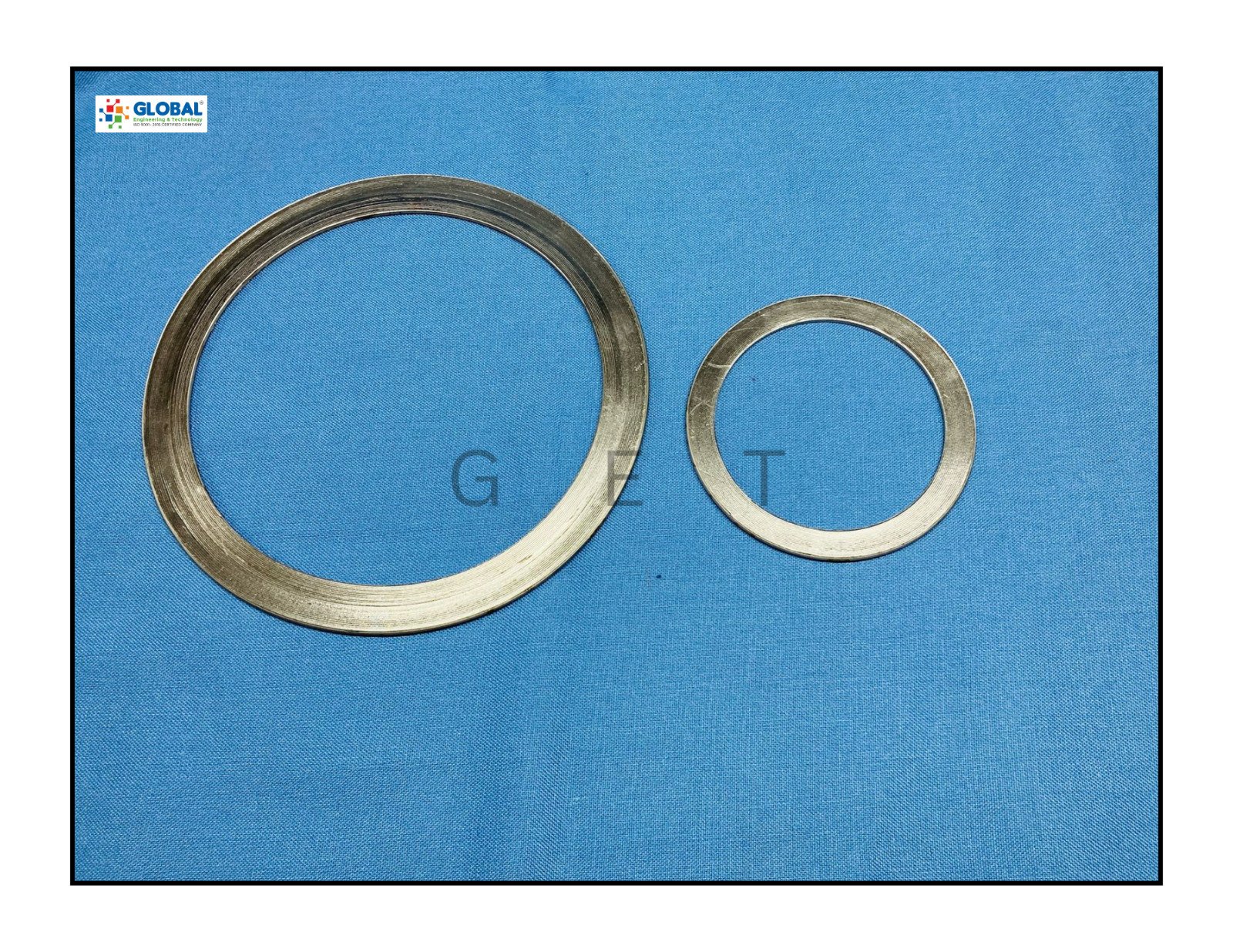

Spiral Wound Gasket

Global Engineering & Technology is one of the biggest suppliers of Spiral wound gaskets. Our products have spirally winding – a preformed metal strip and filler on the outer periphery of the metal winding mandrel. Our supplied spiral wound gasket can be used for all the range of temperatures including cryogenic 2000⁰ F and standard pressure over 2500 psi.

The Metal winding stripe are available in SS 304, 304L, 316, 316L, 316 Ti, 347, MONEL 400, Inconel 600, Inconel 625, Inconel 800, Incoloy 800, Incoloy 825, Nickel 200, Hastelloy, Copper. These gaskets are manufactured to international specifications such as BS, ASME-16.20, 16.5, DIN, API 605 (ASME-B16.47 SERIES-B) &we also manufactured to customer’s specification.

Properties of Spiral Wound Gaskets

Suitable for use across wide pressure range and temperature.
Spiral wound gaskets can be used to seal fluid pressure up to 400 bar and cryogenic temperature as low as -200 degree Celsius and up to elevated temperatures of 1000 degCelsius.
Due to its simple design, Spiral Wound Gaskets are easy to install.
Due to the options of different winding materials, It can be tallored to a wide range of operating conditions.
Easy to remove and cause no damage to the flange.

Metal Double Jacketed Gasket

Our offered metal double jacketed gaskets extend sealing and protection against high pressure condition, fluctuating temperature and corrosion.

Our range of products include gaskets made of soft iron, all grade of steel, brass, copper, aluminium with fillers of asbestos, CAF, non-asbestos, grafoil, PTFE, etc. Our products can be used in heat exchanger, valve cover, autoclaves, manholes, boilers etc.

Styles of heat exchanger Gasket Styles

Heat Exchanger Gasket

We supply a wide range of heat exchanger gaskets, each one having a unique usability and application. Every product has a different configuration to match the requirements and litigations of different industries, specially that involve works like steam generation and heating / cooling processes.

Styles of heat exchanger Gasket Styles

KammprofileGasket / Serrated Gasket

GET manufacturer & supply Kammprofile Gaskets of all shapes and styles and in different material. This includes Grafoil, and PTFE. Our supplied Kammprofile Gaskets are of high-quality and can be used for improved sealing and effectiveness.

They fit to be used in chemical, and petrochemical industry along with other industrial power plants where primary circuit nuclear installations are done.

Corrugated Metal Graphite Gasket

We supply corrugated metal graphite gaskets with a stainless-steel corrugated carrier with the height of 1.5 mm and graphite layer of 0.8 mm on both the sides.

The peak overlap is of 0.1 to 0.2 mm that is right for standard compression with a very little diffusion cross section.

Non-Asbestos Gasket (Asbestos Free Gasket / CNAF Gasket)

Non-Asbestos Gasket that provides excellent sealing and resistance property to perfectly manufactured for high-temperature applications. We deal in Non-Asbestos gaskets made of carbon, aramid fibre and other polymer combinations that provide excellent chemical resistance or with EPDM for potable water application.

Benefits

PTFE / Expanded PTFE Gasket / Gasket Sheet

We offer versatile solutions of PTFE Gaskets that are flexible strips best used for non-standard flange applications. It meets any industries unique needs when you cannot find a conventional gasket as a sealing option.

Specification

While PTFE gasket material is exceptional in it’s range of temperature (to 500 F) and PH range (0-14) it has limitations on the thickness available. Most PTFE sheet is skived off of a roll. Some material is molded but this is generally limited to 24″ x 24″ or 12″ x 12″ sections.

Flexible Graphite Gasket / Gasket Sheet

Flexible Graphite sheet gasket material for extreme temperature and chemical services. We offer highly affordable option for the majority application and scalability in operations while making the entire job safe and simple.

Our supplied flexible graphite gaskets can be applied in industries with high temperature applications upto 850F.

Flexible graphite sheet reinentorced with a 316 stainless steel foil (0.002” thick) made from material typically 98% graphite.
Leachable chloride typically less than 50 ppm.
Sulfur content: 400 ppm. Compressibility: 35%. Recovery: 18%. Creep relaxation: 12%. Density: 62.4 lbs/ft.
Tensile strength: 5000 PSI. Temperature range

Rubber Gasket / Gasket Sheet

Rubber Gasket Or Gasket Sheet that provides excellent abrasion resistance and is perfect to be used in chemical industries where there is excessive use of alkalis and acids. We provide you silicone, neoprene and EPDM gaskets etc., each on with unique property to match your diverse gasket application needs.

Types of Rubber Gasket Sheet
